Console Removal

Previous | Home | Next

The switch console needs to be removed to access the handlebars. To do that, the key/locking knob needs to be removed. The shop manual said to push a release button on the underside and then depress and turn the key counterclockwise. I tried several times without success. It seemed impossible. I must have wasted 15 minutes on this step.

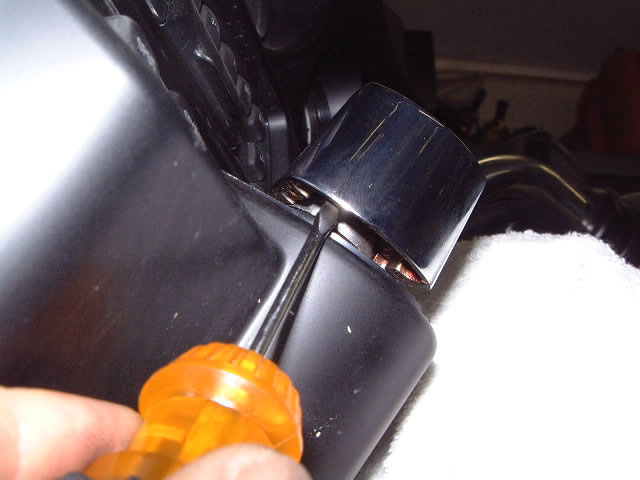

Then I discovered that where they say "key", they really mean to turn the key. (not the entire switch knob). Then, it became easy. Push up on the little hidden button with a small screwdriver, insert your key in the hole, push the key down and turn the key counterclockwise 60 degrees . It'll release the entire switch handle from the shaft. Cool!
