Connector Relocation

Previous | Home | Next

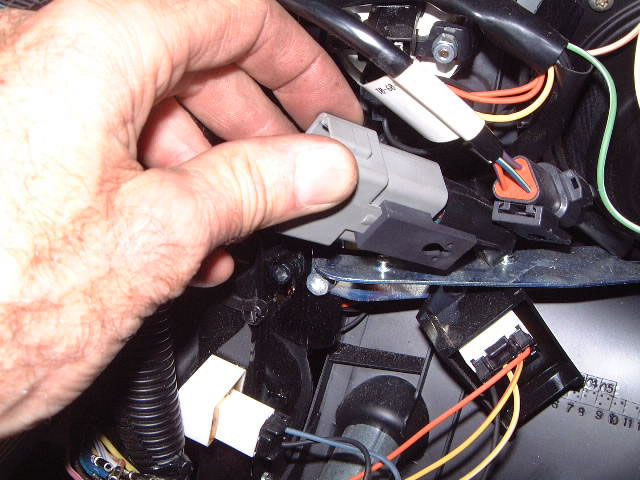

The factory hand control wiring cables do not need to be extended; but the wiring must be re-routed behind the dash. That meant relocating the electrical cable connectors. Here, I'm removing the left-hand cable connector from it's mount in order to relocate . Under the ball of my thumb (extreme lower left corner of the frame), you can see the naked cable connector pins on the end of the hand control cable. That's as close as I could get them to the original connector location.  So, I popped the connector (in my hand) loose to re-positioning it within reach of the control cable.
